E.R.D Paving — Blyth, Northumberland
Block Paving Installed
by Experienced Hands
in Blyth & the North East
Block paving that's laid in the correct pattern for the loading it takes, on a sub-base deep enough to handle North East ground conditions, with edge restraints that keep everything locked in place for decades.
20+
Years Experience
1,200+
Projects Completed
100%
Fully Insured
24hr
Quote Response
Why Block Paving Remains the Most Popular Choice
Block paving is the most versatile and durable surface material available for residential properties. Individual blocks interlock to distribute weight, flex with minor ground movement, and can be individually replaced if damaged — something no other paving material offers. It's suitable for driveways, patios, paths, courtyards, and commercial areas.
The key to block paving performance is the laying pattern. Herringbone at 45 degrees provides the strongest interlock and is mandatory for vehicular areas. Stretcher bond creates a contemporary linear appearance suitable for patios and paths. Basket weave offers a traditional look. The pattern isn't just aesthetic — it determines how effectively loads are transferred across the surface.
At E.R.D Paving, we've laid block paving across hundreds of properties in Blyth, Newcastle, Cramlington, and the wider North East. We work with all major block manufacturers — Marshalls, Brett, Tobermore, Bradstone — and can source specific colours, textures, and formats to match your property and preferences.
Professional block paving installation requires precise edge restraint, correct sub-base preparation, accurate levels for drainage, and proper sand bedding. Each element is critical. Skip any one of them and you'll see the results within two to three winters — sinking, spreading, weed invasion, and water pooling.

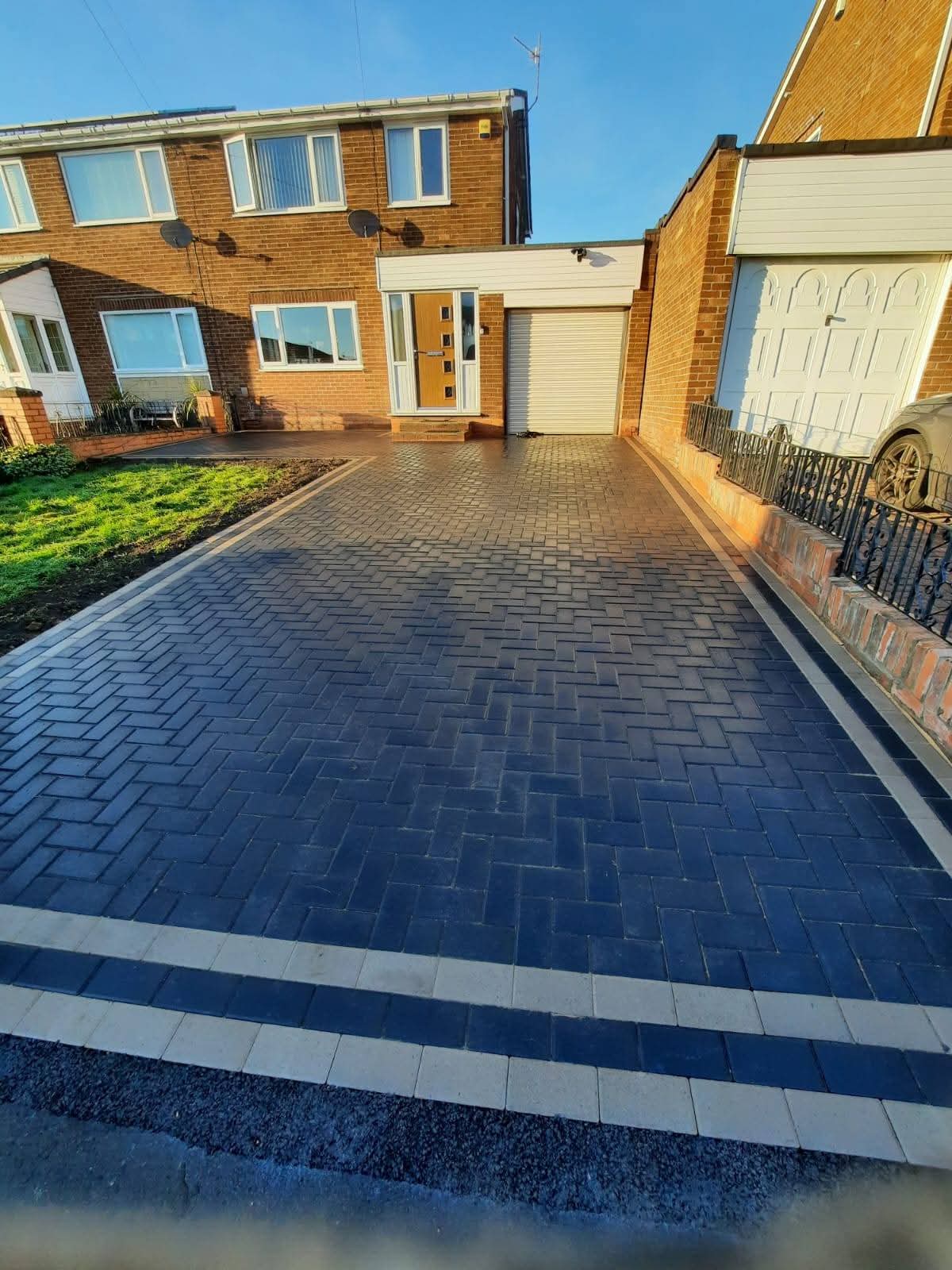

Herringbone Pattern Block Paving
The herringbone pattern at 45 degrees provides the strongest interlock for vehicular areas. This completed driveway features charcoal blocks laid in a precise herringbone pattern with contrasting border courses and concrete edge restraints on all perimeters.
Stretcher Bond Patios & Paths
Stretcher bond creates a clean, contemporary linear appearance ideal for patios and garden paths. This project showcases buff block paving in a running bond pattern with charcoal border detailing and integrated drainage.
Multi-Colour Block Paving Designs
Combining different block colours and textures creates distinctive designs that enhance your property's kerb appeal. This project features a brindle and charcoal colour scheme with a contrasting border course and smooth transitions between surfaces.
Common Block Paving Failures and Their Causes
Block spreading is the most visible failure. You'll notice the blocks gradually moving apart, creating widening joints that fill with weeds and allow individual blocks to rock under foot traffic. This is caused by inadequate edge restraints — either no concrete haunching at all, or plastic edging that flexes under load.
Sinking patches occur when the sub-base hasn't been compacted correctly or hasn't been excavated deeply enough. In Northumberland, clay soils create additional challenges because they shrink in dry weather and expand when wet. A shallow sub-base on clay soil will move with these cycles, and the block surface will follow.
Joint sand washout causes blocks to loosen and weed growth to accelerate. Standard builder's sand washes out in heavy rain — and the North East gets plenty of that. Kiln-dried jointing sand is the minimum specification, and polymeric jointing sand provides the best long-term performance for areas exposed to heavy rainfall.
Efflorescence — white salt deposits — appears on many new block paving installations. While it's a natural process and fades over time, excessive moisture retention in the sub-base or bedding layer makes it significantly worse. Correct drainage and material specification minimise this issue.
Poorly planned drainage leads to water pooling on the surface or, worse, running towards your property. Block paving must fall away from buildings at a consistent gradient. On driveways, this often means installing linear channel drains to intercept water before it reaches the garage or front door.
How We Install Block Paving
Survey & Material Selection
We measure the area, assess ground conditions, and help you select the right block type, colour, and laying pattern. We bring physical samples so you can see colours in your property's natural light.
Detailed Quotation
A fixed-price quote covering excavation, sub-base, edge restraints, drainage, blocks, laying, and jointing. Every element itemised. No vague allowances or provisional sums.
Excavation & Edge Restraints
We excavate to the correct depth, install permanent concrete edge restraints on all exposed perimeters, and prepare the formation level. Edge restraints are set first — they define the finished levels and contain everything within them.
Sub-Base & Bedding
Type 1 MOT sub-base is laid in 75mm layers and compacted with a vibrating plate. Sharp sand bedding is screeded to an even depth. Any drainage channels or connections are installed at this stage.
Block Laying & Cutting
Blocks are laid to the specified pattern with consistent joints. Cuts are made with a block splitter or diamond saw for clean, accurate edges around obstacles, curves, and boundaries.
Compaction & Jointing
The completed surface is compacted with a plate vibrator (using a protective mat), driving blocks into the sand bed and closing joints. Kiln-dried sand or polymeric sand is swept into joints and compacted in multiple passes.
The E.R.D Paving Block Paving Difference
Correct Pattern for Purpose
Herringbone for driveways, stretcher bond for patios. We specify the right pattern for the loading each area receives — not just whichever looks best in a brochure.
Concrete Edge Restraints
Every installation gets poured concrete haunching. No plastic edge strips, no shortcuts. This single detail prevents the block spreading that ruins most budget installations.
Layered Sub-Base Compaction
Sub-base is compacted in 75mm lifts, not tipped and vibrated once. Each layer is tested before the next goes down. This prevents long-term settlement.
Premium Jointing Materials
We use kiln-dried sand as a minimum, with polymeric jointing available for areas exposed to heavy water run-off. Proper jointing prevents washout, weed growth, and ant nesting.
Repairable Surface
Block paving is the only surface that can be lifted, the underlying problem fixed, and the same blocks relaid. If a utility company digs up your drive, the damage can be seamlessly repaired.
Design Flexibility
Borders, feature panels, contrasting colours, curved edges — block paving offers more design options than any other material. We help you create a distinctive finish that complements your property.
Block Paving: Materials, Patterns & Technical Detail
Block paving products fall into two main categories: concrete blocks and clay pavers. Concrete blocks are the most common choice, offering a wide colour range and lower cost. They're manufactured in various thicknesses (50mm, 60mm, 80mm) and formats (200x100mm, 266x133mm, mixed-size packs). Colour options range from natural greys and charcoals through reds, buffs, and blended multi-tones.
Clay pavers offer superior colour permanence — the colour runs through the entire block rather than being a surface treatment. They develop an attractive patina over time and are effectively maintenance-free. However, they cost more than concrete blocks and the colour range is more limited, typically earth tones and traditional reds.
Laying patterns significantly affect structural performance. Herringbone pattern at 45 degrees to the direction of travel is the strongest arrangement for vehicular areas and is specified in BS 7533 for any area subject to vehicle overrun. Stretcher bond (running bond) provides a clean linear look but has lower interlock — suitable for pedestrian-only areas. Basket weave creates a traditional square pattern but provides minimal interlock and is best reserved for decorative areas.
Sub-base depth requirements depend on ground conditions and intended use. For domestic driveways on stable ground, 150mm of compacted Type 1 MOT is the minimum. On clay or made ground, this increases to 200–250mm. Commercial areas and areas with heavy vehicle access require 250–350mm. We always assess ground conditions before specifying sub-base depth — there's no single correct answer.
Edge restraint is the most critical element of any block paving installation. Without rigid edge restraint, horizontal forces from vehicle turning and braking push blocks outward from the edges. We install concrete haunching (minimum C20 mix) along all exposed edges, at a depth and profile that resists these forces. The haunching is concealed by the blocks and adjacent landscape — it's invisible but essential.
Permeable block paving systems use blocks with enlarged spacer nibs that create wider joints, filled with a permeable aggregate rather than sand. Combined with a permeable sub-base, these systems allow rainfall to drain directly through the surface, eliminating the need for separate drainage and avoiding planning permission requirements for front garden installations over 5 square metres. We install permeable systems as standard where they're the most practical solution.
Frequently Asked Questions
How much does block paving cost per square metre?
Installed block paving typically costs between £80 and £120 per square metre, depending on the block type, pattern complexity, and ground conditions. Premium clay pavers or complex patterns with multiple colours and borders will be at the higher end. We provide exact pricing in our fixed-price quotes.
What's the best block paving pattern for a driveway?
Herringbone at 45 degrees. It's not just an aesthetic choice — it provides the strongest interlock and is the only pattern that effectively resists the horizontal forces generated by vehicle braking and turning. We use it on every driveway installation.
How long does block paving last?
Properly installed block paving on an adequate sub-base lasts 25–30+ years. The blocks themselves are virtually indestructible — it's always the sub-base or edges that fail first. This is why we invest so heavily in preparation and edge restraint.
Can block paving be laid in a curve?
Yes, block paving is excellent for curved designs. Individual blocks follow curves naturally, and cuts are made with a block splitter for clean edges. Curved borders, sweeping driveway edges, and circular features are all achievable.
Will weeds grow through block paving?
Weeds don't grow through blocks — they grow in the joints when the jointing sand washes out. We use kiln-dried sand and offer polymeric jointing as an upgrade, which binds the joints and prevents weed germination. Proper joint filling eliminates 90% of weed problems.
Can damaged blocks be replaced?
Yes — this is a major advantage of block paving. Individual blocks can be lifted, the area repaired or adjusted, and blocks relaid. Matching blocks are usually available from the manufacturer, and natural weathering makes colour differences virtually invisible within a season.
Do you install permeable block paving?
Yes. Permeable systems use wider-jointed blocks with a free-draining sub-base, allowing rainwater to soak directly through the surface. They eliminate the need for separate drainage and avoid planning permission requirements for front garden paving over 5 square metres.
How soon can I drive on new block paving?
Block paving can be driven on immediately after the jointing sand has been compacted into the joints — typically the same day the installation is completed. There's no curing time unlike concrete or resin surfaces.
What's the difference between 50mm and 60mm blocks?
50mm blocks are standard for domestic driveways and all pedestrian areas. 60mm blocks are used where heavier vehicles are expected — motorhomes, delivery lorries, or commercial access. 80mm blocks are specified for commercial and industrial applications.
Can you match my existing block paving?
In most cases, yes. We work with all major manufacturers and can source matching products. Where exact matches aren't available (discontinued lines), we can create complementary designs using contrasting borders or transition zones.
Block Paving Across the North East
Local block paving specialists covering Blyth, Northumberland and the wider North Tyneside region.
Get Block Paving Done Right
Free site survey, material samples brought to your door, and a fixed-price quote. Over 20 years of block paving across the North East.
