E.R.D Paving — Blyth, Northumberland
Patio Installation
That Lasts Decades
in Blyth & the North East
A new patio that's built on proper foundations, drains correctly, and still looks sharp after ten winters — installed by a team with over two decades of groundworks experience, not a one-man band with a plate compactor.
20+
Years Experience
1,000+
Patios Installed
100%
Fully Insured
24hr
Quote Response
What Goes Into a Properly Installed Patio?
A patio is an extension of your home — a place to relax, entertain, and enjoy your garden. The difference between a patio that lasts 5 years and one that lasts 25 comes down entirely to what's underneath the surface — the excavation depth, sub-base material, compaction, and drainage.
At E.R.D Paving, we install patios using Indian sandstone, porcelain, block paving, and concrete slabs. Each material has different structural requirements, cost profiles, and maintenance needs. We help you choose the right option for your property, your budget, and the ground conditions specific to your site.
This service is for homeowners in Blyth, Newcastle, Cramlington, and across Northumberland who want a patio that works properly from day one. Whether you're replacing a cracked concrete patio, extending your living space outdoors, or upgrading to a premium porcelain finish, we handle every stage from planning approval checks through to final sealing.
Professional installation matters because patios fail when the groundwork is rushed. Insufficient excavation, poorly compacted sub-base, missing edge restraints, and inadequate drainage cause sinking, spreading, and weed growth that no amount of re-sanding or power washing can fix. We prevent these problems by doing the invisible work correctly.

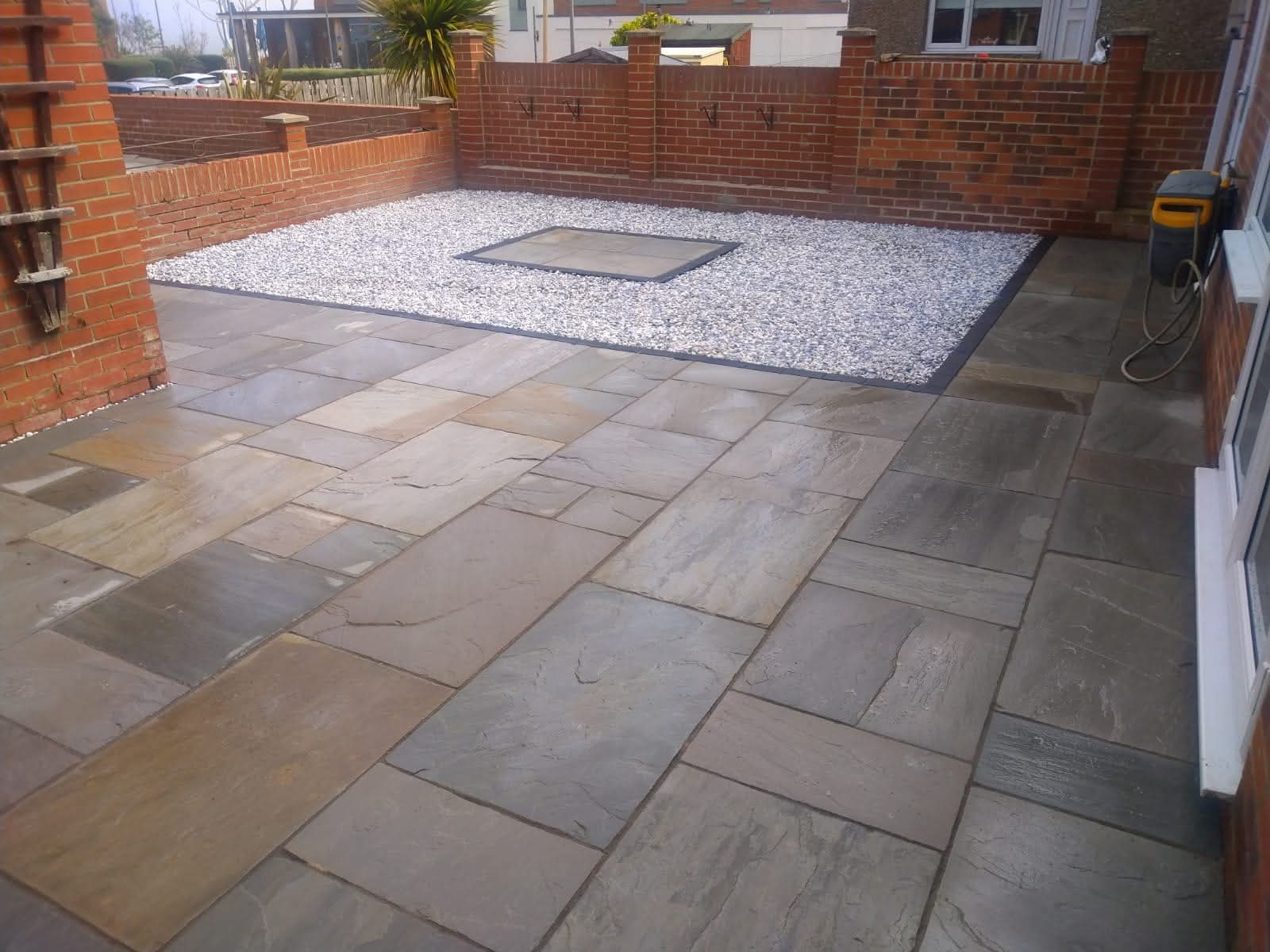

Indian Sandstone Patios
Our most popular patio finish — natural Indian sandstone paving laid on a full mortar bed with pointed joints. This completed project features a Raj Green colour scheme with proper drainage and smooth transitions to the lawn.
Porcelain Patios & Outdoor Kitchens
We design and build premium porcelain patios with integrated outdoor kitchens and BBQ areas. This project showcases grey porcelain paving with a contrasting border pattern and custom-built brick pizza oven.
Block Paved Patio Areas
From small seating areas to complete garden transformations — we handle every stage of patio installation. This project involved removing an old concrete patio, installing a new Type 1 sub-base compacted in layers, and laying buff block paving with a charcoal border and integrated drainage channel.
What Happens When a Patio Is Installed Incorrectly
The most visible sign of a failed patio is sinking — patches where the surface drops, creating dips that collect water. This happens when the sub-base hasn't been excavated to the correct depth or hasn't been compacted in layers. In Northumberland, where clay soils expand and contract with moisture levels, this is particularly common with budget installations.
Paving slabs that spread or shift indicate missing or inadequate edge restraints. Without a proper concrete haunching along every exposed edge, slabs gradually migrate outward under foot traffic. Once the pattern opens up, individual slabs rock, joints widen, and weeds establish in the gaps.
Drainage failure is the most expensive problem to fix retrospectively. A patio must fall away from your property at a minimum gradient. If water pools against your house, it saturates the foundations and can cause internal damp, cracking, and structural movement. Planning regulations also require that patios over 5 square metres use permeable materials or drain to a soakaway — not into the public highway.
Many homeowners in the North East have inherited poorly installed patios from previous owners or budget contractors. The typical repair cost for a failed patio exceeds the cost of having it installed correctly in the first place. We regularly replace patios that are less than five years old because the original installer cut corners on preparation.
Our Patio Installation Process
Free Site Survey
We measure the area, assess the existing surface and ground conditions, check drainage routes, and discuss material options. If planning permission is needed, we advise you at this stage.
Fixed-Price Quotation
You receive a written quote detailing every element — excavation, materials, drainage, edge restraints, and finishes. The price is fixed. No hidden extras.
Excavation & Sub-Base
We excavate to the correct depth for your chosen material (typically 200–250mm), lay and compact Type 1 MOT sub-base in layers, and install edge restraints with concrete haunching.
Drainage Installation
Linear drainage channels, soakaways, or connections to existing drainage are installed as required. Every patio we build drains correctly — it's non-negotiable.
Surface Laying
Your chosen material is laid to the agreed pattern, with consistent joint widths, correct levels, and proper cuts around obstacles. Paving slabs are laid on a full mortar bed and pointed with weatherproof jointing compound.
Final Inspection & Clean-Up
We walk the completed patio with you, check every detail against the specification, clear all waste, and wash down surrounding areas. Your property is left cleaner than we found it.
Why Our Patios Outperform the Competition
Engineered Sub-Base
Every patio gets a minimum 150mm compacted Type 1 sub-base, laid in 75mm layers and compacted individually. This is the single most important factor in patio longevity.
Proper Edge Restraints
Concrete haunching on every exposed edge prevents slab spreading. We don't use plastic edging strips — they flex under loading and fail within 3–5 years.
Drainage Compliance
Every installation meets current planning requirements for surface water management. Permeable paving, soakaways, and channel drains specified where needed.
Material Expertise
We work with all major patio materials and can advise on the best option for your specific situation — accounting for usage patterns and aesthetic preferences.
Frost-Rated Materials Only
Every product we use is specified for freeze-thaw resistance. We don't use materials that crack, spall, or delaminate in Northumberland winters.
Clean, Professional Site
Skip bin on site from day one. Materials stored neatly. Surrounding areas protected. We run a site you'd be comfortable showing your neighbours.
Patio Materials, Specifications & Options
Indian sandstone remains the most popular patio surface in the North East, offering a natural appearance and unique colour variation. It requires sealing to prevent staining and is best laid on a full mortar bed with pointed joints.
Porcelain paving provides a contemporary, low-maintenance alternative with consistent colour and superior stain resistance. It needs a full mortar bed and primed slabs for adhesion.
Block paving offers a cost-effective option for smaller patio areas and can be laid in various patterns. It requires a compacted sub-base, edge restraints, and kiln-dried sand jointing.
Concrete slabs are a budget-friendly option for utility areas and can be finished with various textures and colours. They require a compacted sub-base and can be laid on sand or mortar.
For properties in Blyth and coastal areas, we factor in salt spray exposure when specifying materials. Some natural stones and concrete products are more susceptible to salt damage than others. We always recommend materials with proven performance in coastal North East conditions and can provide case studies of previous installations in similar environments.
Frequently Asked Questions
How much does a new patio cost in Blyth?
Patio costs depend on size, material choice, and ground conditions. As a guide: Indian sandstone typically ranges from £100–£150 per square metre installed, porcelain from £120–£180, block paving from £80–£120, and concrete slabs from £60–£100. We provide exact, fixed-price quotes after a free site survey.
How long does patio installation take?
A standard single patio (15–20 square metres) typically takes 3–4 working days. Larger or more complex projects with drainage, steps, or retaining walls may take 5–7 days. We confirm the timeline in your quote.
Do I need planning permission for a new patio?
If you're paving over more than 5 square metres of garden with impermeable materials, planning permission is required. Using permeable paving or draining to a soakaway within your property avoids this requirement. We advise on this during your survey and can specify compliant solutions.
What patio material is best for the North East?
Indian sandstone offers a good balance of appearance, durability, and value for North East conditions. It handles freeze-thaw cycles well and provides a natural look. Porcelain is a low-maintenance alternative. We can discuss alternatives based on your specific priorities.
How long will my new patio last?
A properly installed Indian sandstone patio lasts 20–30+ years. Porcelain surfaces last 25–35 years. Block paving typically lasts 15–25 years. Concrete slabs last 10-20 years. The key factor is sub-base preparation — this is where we invest the most time and attention.
Can you replace part of an existing patio?
Yes, though it depends on the condition of the existing sub-base. If the foundations are sound, we can overlay or replace the surface layer. If the sub-base has failed, a full replacement is more cost-effective than patching. We'll assess this during your site visit.
Do you install patio steps and ramps?
Yes, we can incorporate steps, ramps, and retaining walls into your patio design. We ensure they comply with building regulations and provide safe access to your garden.
What guarantee do you provide on patios?
All patio installations carry a workmanship guarantee covering sub-base, laying, and edge restraints. Materials carry their respective manufacturer warranties. If anything we've installed fails within the guarantee period, we return and fix it at our cost.
Can you install a patio in winter?
Yes, we install patios year-round. Sandstone and porcelain work can proceed in most conditions. We avoid laying in heavy frost or prolonged rain, but these interruptions rarely add more than a day or two to the schedule.
Do you offer patio cleaning or maintenance?
Our focus is on new installations and complete replacements. For existing patios, we can re-sand block paving joints and re-seal natural stone surfaces. We'll advise on the best maintenance regime for your specific material during handover.
Patios Across the North East
Local patios specialists covering Blyth, Northumberland and the wider North Tyneside region.
Get a Patio That Actually Lasts
Free site survey, fixed-price quote, and a team that's installed over a thousand patios across the North East. No obligation, no pressure.
